Zetron MIC100 Industrial Online Multi Gas Detector | Fixed 4-in-1 Gas Monitoring System for Oil, Chemical, and Wastewater Plants
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام محصول | MIC 100 | نوع | آشکارساز ثابت |
|---|---|---|---|
| انواع گاز قابل ردیابی | گازهای قابل احتراق، گازهای سمی، VOCs | دقت اندازه گیری | 3 ٪ از مقیاس کامل |
| زمان پاسخ (T90) | گازهای قابل احتراق: <30 ثانیه | دمای کار | -40 درجه سانتیگراد تا +70 درجه سانتیگراد |
| صدور گواهینامه ضد انفجار | Exd IIC T6 Gb (گاز قابل احتراق) Exd ib IIC T6 Gb (گاز سمی) | ضمانت | 1 سال |
توضیحات محصول

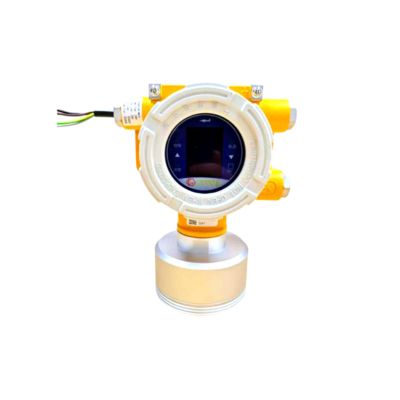

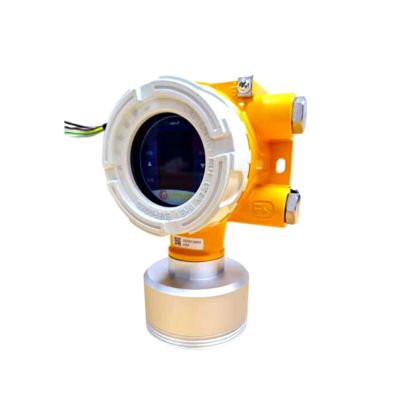

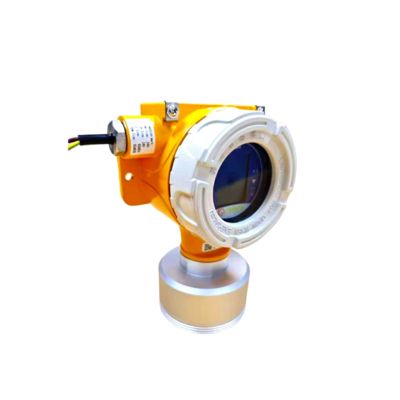

MIC100 Fixed Type 4-in-1 Gas Detector
The MIC100 Multi-Gas Online Detector is a high-performance, multi-functional gas detection terminal designed specifically for industrial safety applications. It can simultaneously monitor up to four different gases and can be flexibly configured to handle combustible gases, toxic and hazardous gases, and volatile organic compounds (VOCs).
The MIC100 integrates multiple advanced sensing technologies, including catalytic combustion, high-sensitivity electrochemical, precise non-dispersive infrared (NDIR), and fast-response photoionization (PID) sensors, ensuring superior measurement accuracy and reliability.
Its intelligent modular design, combined with a clear OLED display and convenient infrared remote control operation, greatly improves maintenance efficiency and enhances operational safety in hazardous environments. Additionally, the MIC100 features IP66-rated triple waterproof protection and strict explosion-proof certification, making it a reliable safeguard for personnel health and production safety.
Key Features
-
Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.
-
Integrates catalytic combustion, electrochemical, NDIR, and PID technologies to ensure broad-spectrum and high-precision detection.
-
Modular smart sensors support quick replacement and maintenance; equipped with an OLED high-definition display and infrared remote control, allowing parameter settings without opening the housing.
-
Convenient and Intuitive Operation: Features an OLED display for clear and intuitive concentration readings. Supports infrared remote control operation, allowing users to perform parameter settings and calibration without opening the housing in hazardous areas—significantly enhancing safety and convenience.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detectable Gas Types | Combustible gases, toxic gases, VOCs |
| Core Sensing Principles | Catalytic combustion, electrochemical, photoionization, thermal conductivity, NDIR infrared |
| Measurement Accuracy | ±3% of full scale |
| Repeatability Error | ±2% |
| Response Time (T90) | Combustible gases: < 30 seconds |
| Working Voltage | 24VDC (operating range: 10VDC to 30VDC) |
| Max Power Consumption | Toxic gases: < 1.5W; Combustible gases: < 2.5W |
| Signal Output Interfaces | 3-wire 4~20mA / 4-wire RS485 (simultaneous output); two sets of passive relay contacts (24VDC, 2A) |
| Housing Material | High-strength aluminum alloy |
| Dimensions (L×W×H) | 209 mm × 160 mm × 86 mm |
| Weight | Approx. 2.1 kg |
| Installation Method | Wall-mounted, horizontal or vertical pipe installation |
| Protection Rating | IP66 |
| Operating Temperature Range | Toxic gases: -20°C ~ +50°C; Combustible gases: -40°C ~ +70°C |
| Humidity Range | 10% ~ 95%RH (non-condensing) |
| Atmospheric Pressure Range | 86 kPa ~ 106 kPa |
| Explosion-Proof Certification | Exd IIC T6 Gb (combustible) / Exd ib IIC T6 Gb (toxic) |
| Metrology Certification | CPA Certified |
| Compliance Standards | GB15322.1-2019, GB3836.1/2/4-2021, GB12358-2006 |
Application Industries:
The MIC100 Multi-Gas Online Detector is widely used in petrochemical, oil and gas, chemical, metallurgy, environmental protection, and pharmaceutical industries. It provides continuous and accurate monitoring of combustible, toxic, and volatile gases in complex industrial environments, ensuring workplace safety, preventing gas leaks, and protecting both personnel and equipment through reliable real-time detection and alarm functions.
